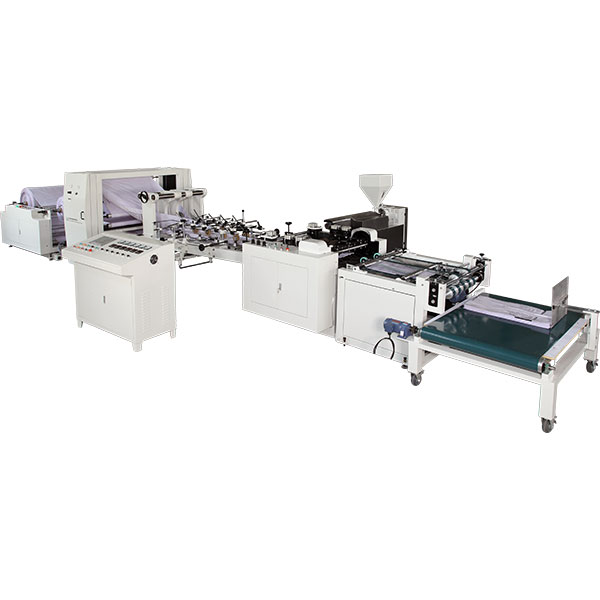

MSEC-1300
This machine can produce various of beautiful composite bags.It`s an ideal machine for producing packing bags of industries such as chemical material,fertilizer,cement,food,etc.It can process mid-sealing & gusset bags,no gusset bags,flat open top bags.
This machine takes coated woven cloth or paper-plastic compound woven cloth as raw material. Its production steps includes double-station unwinding,tubing,gusseting,mid-sealing,cutting and stacking.
This machine has advanced design and reasonable new type structure.It equips advanced electric system and mechanical device.Its machine body has a stable structure.
This machine is equiped with servo technology and PLC(programmable logic controller) control system.Workers can read the parameters and set them by HMI on touch screen.This production line has high automation level and it`s easy to operate.
|
Specifications |
|
|
Type |
MSEC-1300 |
|
Output(pcs/min) |
20~120 |
|
Bag width(mm) |
380~600 |
|
Bag length(mm) |
500~1200 |
|
Gusset width(mm) |
75~150 |
|
Total power(kW) |
32 |
|
Total weight(T) |
Approx.12 |
|
Dimension(L*W*H)(m) |
14×4.6×2.5 |
